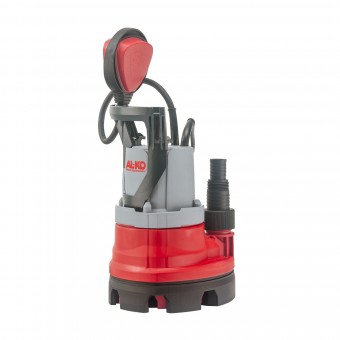

The DRAIN 9500 Easy combination submersible pump for clear and dirty water

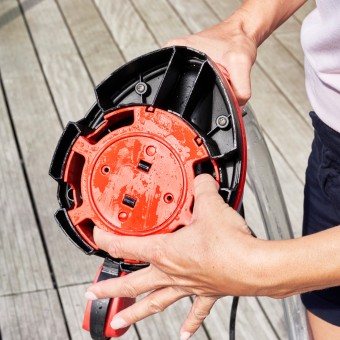

The combination pump base (adjustable pump foot) makes the DRAIN 9500 Easy suitable for both clear and dirty water. The dirty water function is used when contaminated water needs to be pumped away, e.g. after flooding. The DRAIN 9500 Easy can also handle contaminated water with grain sizes of up to 25 mm effortlessly thanks to its large suction opening.
The DRAIN 9500 Easy can also handle contaminated water with grain sizes of up to 25 mm effortlessly.
Adjustable switching height due to 2-position bracket
The float switch can be set in two positions for continuous, supervised as well as automatic operation. In automatic mode, the pump switches off automatically after reaching the minimum water level.
The submersible pump can be used for mobile or stationary drainage thanks to the practical integrated carrying handle and the low weight of only around 4 kg. With its 300 W power, a delivery head of max. 6m and a flow rate of up to 8,500 l/h, pumping out and transferring water is done in no time. The pump outlet integrated in the large pump base ensures best performance. Flexible thanks to the screw-on combination connector on the pump outlet. The pump outlet has a size of 1.25 inches, which corresponds to about 41.9 mm.
With the help of the specially treated motor shaft, which is made of resistant Inox stainless steel, and the fibreglass-reinforced polypropylene housing, a long service life has been ensured for the practical helper.
Note: The submersible pump is not suitable for drinking water, but only for service water and chlorinated water (swimming pool water) below 35 °C. It is also not suitable for use in water supply systems. Likewise, it is not suitable for use in salt water, water with aggressive chemicals or water containing sand.
Note: The submersible pump is not suitable for drinking water.
Buy the AL-KO DRAIN 9500 Easy submersible pump & Alternatives
Buy the DRAIN 9500 diving pump now in our webshop or from one of our specialist dealers. If you would like a more powerful submersible pump, we recommend the DRAIN 10000 Comfort submersible pump (item no. 112825).
Technical Data
General
Product number | 113962 |
---|---|
EAN | 4003718062953 |
max flow rate l / h | 8500 LPH |
Max. Delivery Head in m | 6 M |
Max. Pressure in bar | 0.6 BAR |
Flat Suction up to mm | 25 MM |
Pump Drive | 1-stage |
Net Weight in kg | 4 KG |
Max. Grain Size in mm | 25 MM |
Length in cm | 200 CM |
Gross Weight in kg | 4 KG |
Width in cm | 170 CM |
Height in cm | 300 CM |
Cable Length in m | 10 M |
Product Range | Easy |
Brand | AL-KO |
Power supply
Drive type | Electric |
---|
Engine
Motor power in watts | 300 W |
---|
Download Manuals
Product Manual |
Download (3.19MB) |
---|---|
EC Declaration of Conformity |
Download (1.5MB) |
FAQ
Dirty water is referred to: sediment-rich flowing waters, brackish water (mixture of salt and fresh water), flood water, pond water (if inlet without filtering)
Dirty water is therefore water with suspended and sedimentated matter as an admixture in the medium.
Having the pumps certified for drinking water would require fulfill many legal requirements and this would make the device too expensive. Most of the pumps and domestic water supply systems in this category are not intended for drinking water.
Submersible pressure and deep well pumps are suitable for pumping irrigation and process water directly from the cistern or well (clear water)
- Large flow rate at higher pressure
- Quiet, as it is immersed directly in the water
- Automatic control when combined with a switching unit
- Pressure line required
Domestic waterpumps has the advantage of pumping automatically. Often electronicly controlled and with a pressure tank. Pressure pumps delieveres water pressure but with an on/off switch system. Forexample to to run a garden sprinkler system.
