Your advantages
Thanks to MaxAirflow technology, the 250 litre grass catcher box is filled efficiently and less time is needed to empty it.
The striking appearance, the clear lines and the excellent workmanship make our lawn tractors eye-catching and stylish.

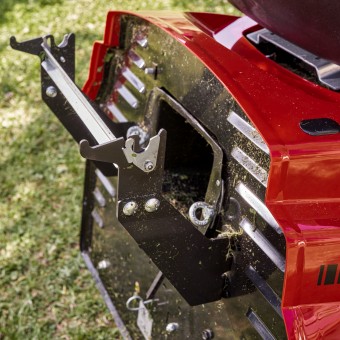

Thanks to the new pivoting point, less force is needed to empty the large 250 litre grass catcher box. The new box lock also makes it easier to attach and detach and provides additional safety.
Extra strong frame
Our lawn tractors feature torsionally rigid, durable and very stable frames with a sophisticated design providing the protection of moving parts.

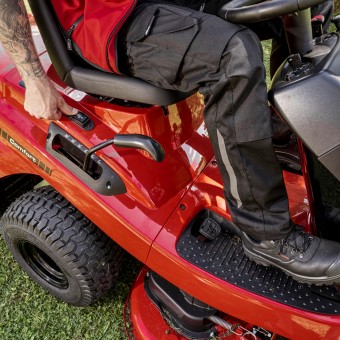

Our lawn tractors are designed to be easy to mount and dismount whilst also providing a high degree of legroom for comfort during use.
The large-volume gras catcher box warns the user with an acoustic signal as soon as the box is full.
The extra large tyres provide optimum traction on any surface and are gentle on the lawn.

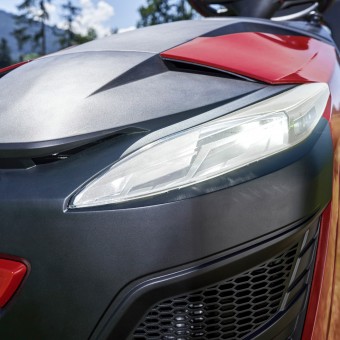

The bright LED headlights provide excellent working light in the dark. They are particularly helpful when using the lawn tractor for winter maintenance.
Technical Data
| Power in kW | 9.6 KW |
|---|---|
| Brand | solo® by AL-KO |
| Working Width in cm | 93 CM |
| Cutting Width in cm | 95 CM |
| Cutting height min / max in mm | 30 - 80 MM |
| Engine Model | B&S Intek 7160 |
| Cubic Capacity in cc | 656 |
| Motor Type | 4-Stroke |
| Number of Strokes rpm | 2600 |
| No. of Engine Cylinders | 2 |
| Electric Start | Yes |
| Autochoke | No |
| Product Range | COMFORT pro |
| Length in cm (Out of Box) | 239 CM |
| Height in cm (Out Of Box) | 114 CM |
| Width in cm (Out Of Box) | 102 CM |
| Headlights | LED |
| Blade Type | Diamond cut |
| Disengageable Mower Drive | Yes |
| Mulching function | Optional |
| Sound Power Guar LwA[dB (A)] | 100 |
| Rear Wheel Diameter inches | 18X8.5-8 |
| Device Power in kW | 9.6 |
| Type of Blade Clutch | Electromagnetic |
| Front Wheel Diameter inches | 15X6.0-6 |
| Catch Box Capacity in Litres | 250 L |
| Transmission | Foot hydrostatic T3 |
| Type of Cutting Deck | Standard |
| Collecting | Yes |
| Catch Box Material | Fabric with hard top |
| Vibration Value ahw (m/s ^ 2) | 4 |
| Forward Speed max km/h | 9 KMH |
| Type of Display | Without |
| Connectivity | No |
| Uncertainty Factor KpA[dB (A)] | 2 |
| with Catch Box | Yes |
| K value (m / s ^ 2) | 2 |
| Sound Power Meas LwA[dB (A)] | 98 |
| Catch Box Level Indicator | Yes |
| Cutting Height Adjustment | Central, 6 stage |
| Side Discharge | No |
| Reverse Speed max km/h | 4 KMH |
| No. of Blades | 2 ST |
| Sound Press Meas LpA [dB (A)] | 90 |
| Differential lock | 002 |
| Electric Box Emptying | No |
