Your advantages
Thanks to MaxAirflow technology, the 250 litre grass catcher box is filled efficiently and less time is needed to empty it.
The striking appearance, the clear lines and the excellent workmanship make our lawn tractors eye-catching and stylish.

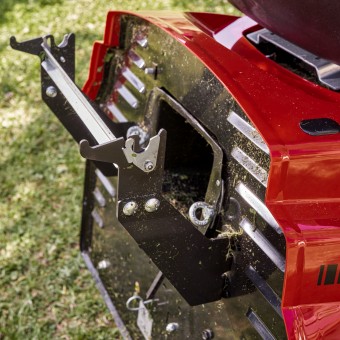

Thanks to the new pivoting point, less force is needed to empty the large 250 litre grass catcher box. The new box lock also makes it easier to attach and detach and provides additional safety.
Extra strong frame
Our lawn tractors feature torsionally rigid, durable and very stable frames with a sophisticated design providing the protection of moving parts.
Our lawn tractors are designed to be easy to mount and dismount whilst also providing a high degree of legroom for comfort during use.
The large-volume gras catcher box warns the user with an acoustic signal as soon as the box is full.
The extra large tyres provide optimum traction on any surface and are gentle on the lawn.
Technical Data
| Power in kW | 6.3 KW |
|---|---|
| Brand | solo® by AL-KO |
| Working Width in cm | 93 CM |
| Cutting Width in cm | 95 CM |
| Cutting height min / max in mm | 30 - 80 MM |
| Engine Model | 022 |
| Motor Type | 4-Stroke |
| Cubic Capacity in cc | 344 |
| Number of Strokes rpm | 2600 |
| No. of Engine Cylinders | 1 |
| Electric Start | Yes |
| Autochoke | No |
| Product Range | COMFORT pro |
| Length in cm (Out of Box) | 239 CM |
| Height in cm (Out Of Box) | 114 CM |
| Width in cm (Out Of Box) | 102 CM |
| Differential lock | 002 |
| Cutting Height Adjustment | Central, 6 stage |
| Catch Box Capacity in Litres | 250 L |
| Forward Speed max km/h | 9 KMH |
| Front Wheel Diameter inches | 15X6.0-6 |
| Headlights | optional |
| Rear Wheel Diameter inches | 18X8.5-8 |
| Electric Box Emptying | No |
| Connectivity | No |
| Vibration Value ahw (m/s ^ 2) | 4 |
| Reverse Speed max km/h | 4 KMH |
| Catch Box Material | Fabric with hard top |
| Type of Blade Clutch | Electromagnetic |
| Collecting | Yes |
| Device Power in kW | 6.3 |
| Sound Power Guar LwA[dB (A)] | 100 |
| Catch Box Level Indicator | Yes |
| K value (m / s ^ 2) | 2 |
| Type of Cutting Deck | Standard |
| with Catch Box | Yes |
| Sound Power Meas LwA[dB (A)] | 98 |
| Mulching function | Optional |
| Side Discharge | No |
| No. of Blades | 2 ST |
| Transmission | Foot hydrostatic T3 |
| Uncertainty Factor KpA[dB (A)] | 2 |
| Disengageable Mower Drive | Yes |
| Sound Press Meas LpA [dB (A)] | 90 |
| Blade Type | Diamond cut |
| Type of Display | Without |
